MBX Non Cage Miniature Linear Guide
High Precision and High load capacity in an ultra compact design. MBX Miniature Linear Guides are Interchangeable with other brands and come with built in dust sealing. Rails and carriages come standard in Corrosion resistant material in Narrow and Wide Series available with short delivery times.

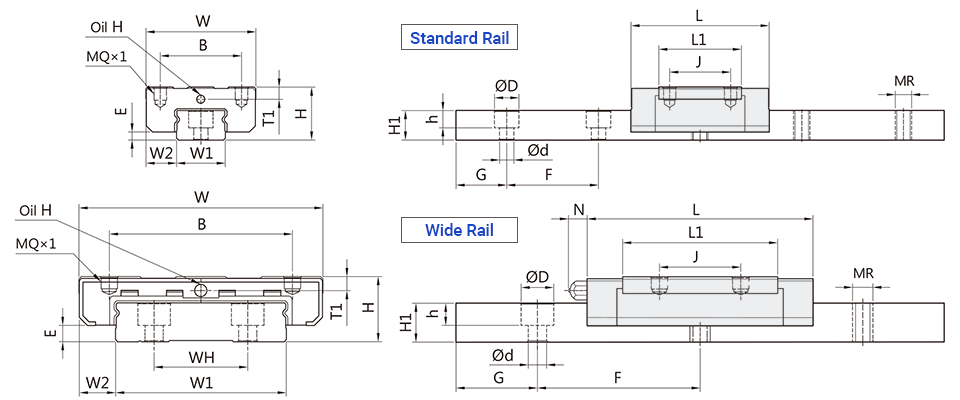

| Product No | Assembly mm | Dimension of Block mm | Dimension of Rail mm | Rating load kN | Static Torque N•m | Weight | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | W | W2 | E | L | B | J | MQ | l | L1 | Oil-H | T1 | N | W1 | H1 | F | d | D | h | WH | G | MR | L max | C | C0 | Mx | My | Mz | Block kg | Rail kg/m | |
| MBX07SN | 8 | 17 | 5 | 1.5 | 24 | 12 | 8 | M2 | 2.3 | 13 | Ø1.1 | 1.7 | - | 7 | 4.7 | 15 | 2.4 | 4.5 | 2.4 | - | 5 | M3 | 900 | 1.51 | 1.29 | 3.09 | 3.69 | 5.02 | 0.009 | 0.25 |
| MBX09SN | 10 | 20 | 5.5 | 2.2 | 30.8 | 15 | 10 | M3 | 2.5 | 19.5 | Ø1.5 | 2.4 | - | 9 | 6.05 | 20 | 3.5 | 6 | 3.3 | - | 7.5 | M4 | 900 | 2.01 | 2.26 | 10.35 | 8.34 | 8.34 | 0.014 | 0.39 |
| MBX09SL | 10 | 20 | 5.5 | 2.2 | 40.5 | 15 | 16 | M3 | 2.5 | 29.2 | Ø1.5 | 2.4 | - | 9 | 6.05 | 20 | 3.5 | 6 | 3.3 | - | 7.5 | M4 | 900 | 2.75 | 3.24 | 14.71 | 16.67 | 16.67 | 0.020 | 0.39 |
| MBX12SN | 13 | 27 | 7.5 | 2 | 34 | 20 | 15 | M3 | 3.2 | 20.3 | Ø2 | 3 | - | 12 | 7.25 | 25 | 3.5 | 6 | 4.25 | - | 10 | M4 | 900 | 3.29 | 3.43 | 22.48 | 11.67 | 11.67 | 0.029 | 0.63 |
| MBX12SL | 13 | 27 | 7.5 | 2 | 47 | 20 | 20 | M3 | 3.2 | 33.3 | Ø2 | 3 | - | 12 | 7.25 | 25 | 3.5 | 6 | 4.3 | - | 10 | M4 | 900 | 4.41 | 5.15 | 33.34 | 27.46 | 27.46 | 0.047 | 0.63 |
| MBX15SN | 16 | 32 | 8.5 | 4 | 42 | 25 | 20 | M3 | 3.5 | 25.3 | M3 | 3.5 | 5 | 15 | 9.5 | 40 | 3.5 | 6 | 4.5 | - | 15 | M4 | 900 | 5.44 | 5.59 | 39.23 | 25.50 | 25.50 | 0.047 | 1.05 |
| MBX15SL | 16 | 32 | 8.5 | 4 | 59.8 | 25 | 25 | M3 | 3.5 | 43.1 | M3 | 3.5 | 5 | 15 | 9.5 | 40 | 3.5 | 6 | 4.5 | - | 15 | M4 | 900 | 7.16 | 7.85 | 54.92 | 53.94 | 53.94 | 0.078 | 1.05 |
| MBX09WN | 12 | 30 | 6 | 3.4 | 39 | 21 | 12 | M3 | 2.5 | 26.7 | Ø1.5 | 2.3 | - | 18 | 7.5 | 30 | 3.5 | 6 | 4.5 | - | 10 | M4 | 900 | 3.19 | 3.24 | 30.60 | 14.71 | 14.71 | 0.030 | 0.98 |
| MBX09WL | 12 | 30 | 6 | 3.4 | 51 | 23 | 24 | M3 | 2.5 | 38.7 | Ø1.5 | 2.3 | - | 18 | 7.5 | 30 | 3.5 | 6 | 4.5 | - | 10 | M4 | 900 | 4.27 | 4.22 | 40.21 | 26.97 | 26.97 | 0.042 | 0.98 |
| MBX12WN | 14 | 40 | 8 | 3.8 | 44.5 | 28 | 15 | M3 | 3.5 | 30.5 | Ø2 | 3 | - | 24 | 8.7 | 40 | 4.5 | 8 | 4.5 | - | 15 | M5 | 900 | 5.34 | 5.20 | 64.73 | 25.69 | 25.69 | 0.052 | 1.53 |
| MBX12WL | 14 | 40 | 8 | 3.8 | 59.1 | 28 | 28 | M3 | 3.5 | 45.1 | Ø2 | 3 | - | 24 | 8.7 | 40 | 4.5 | 8 | 4.5 | - | 15 | M5 | 900 | 7.01 | 6.91 | 86.30 | 47.56 | 47.56 | 0.076 | 1.53 |
| MBX15WN | 16 | 60 | 9 | 4 | 55.5 | 45 | 20 | M4 | 4 | 38.1 | M3 | 3.5 | 5 | 42 | 9.5 | 40 | 4.5 | 8 | 4.5 | 23 | 15 | M5 | 900 | 8.92 | 8.38 | 171.62 | 50.02 | 50.02 | 0.111 | 2.97 |
| MBX15WL | 16 | 60 | 9 | 4 | 74.7 | 45 | 35 | M4 | 4 | 57.3 | M3 | 3.5 | 5 | 42 | 9.5 | 40 | 4.5 | 8 | 4.5 | 23 | 15 | M5 | 900 | 11.18 | 10.79 | 220.66 | 95.62 | 95.62 | 0.165 | 2.97 |
Static Load Capacity
