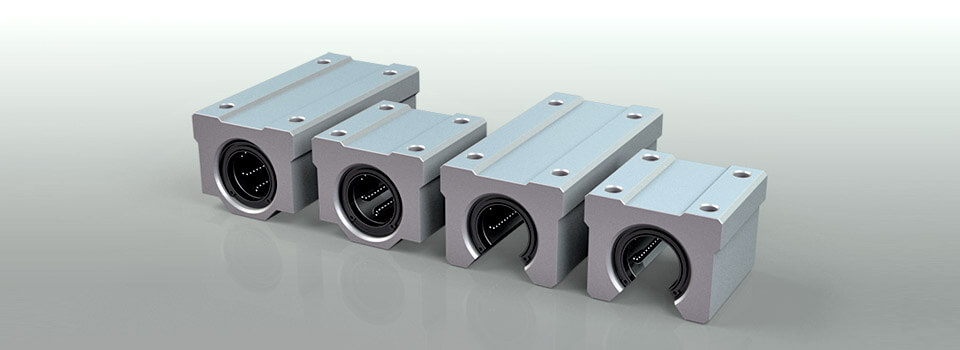

Slide Bush Case Unit

• SMA、SMB
• Standard type
• Diameter Ø8~Ø60mm
• SMB With Self-lubricating

• SMA-L、SMB-L
• Standard (Lengthen type)
• Diameter Ø8~Ø60mm
• SMB-L With Self-lubricating

• SME
• Open type
• Diameter Ø10~Ø50mm

• SME-L
• Open type (Lengthen type)
• Diameter Ø16~Ø40mm

• TBR
• Open type (With Flange)
• Diameter Ø28~Ø45mm

Standard type most commonly used standard type. housing is made of aluminum alloy. Open type housing allows a support from below so that a deflection of the shaft is minimized for high loading or long-stroke applications.
